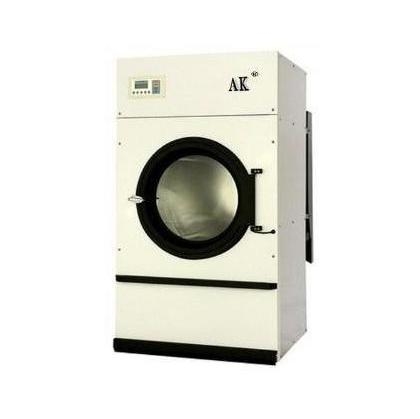

1 ,Heating: electrical,gas , steam, electrical and steam, coal. Operator could choose. 2,Drums are all in stainless steel,panels are in stainless steel or spray material, preventthe pollution of corrosion to fabric. 3,Large door, easy loading and unloading, opens 180 ° , option:leftor right opening. 4,Optimal design of cooling fan, with the best heat dissipation, wind speed. 5,Fully automatic computer control the temperature, temperature control devices, over-temperature protection device. 6, Easy accessibility to the vital parts, easy service, quick replacement of the belt. | |||||
Model | HG-15 | HG-20 | HG-30 | HG-50 | |
Đơn giá, full stainless steel price (Giá bán buôn) | 60,000,000 | 65,000,000 | 70,000,000 | 90,000,000 | |
Capacity | kg | 15 | 20 | 30 | 50 |
Drum Dimension | mm | Φ750x64 | Φ890x700 | Φ980x840 | Φ1070x1000 |
Drum voluem | l | 285 | 435 | 633 | 900 |
Motor Power | kw | 0.55 | 0.75 | 0.75 | 1.1 |
Fan power | kw | 0.55 | 0.75 | 0.75 | 1.1 |
Steam Pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Dimension(L.W.H ) | mm | 840x1180x1700 | 1040x1210x1780 | 1130x1370x1920 | 1320x1550x1988 |
Net Weight | kg | 400 | 340 | 385 | 550 |
